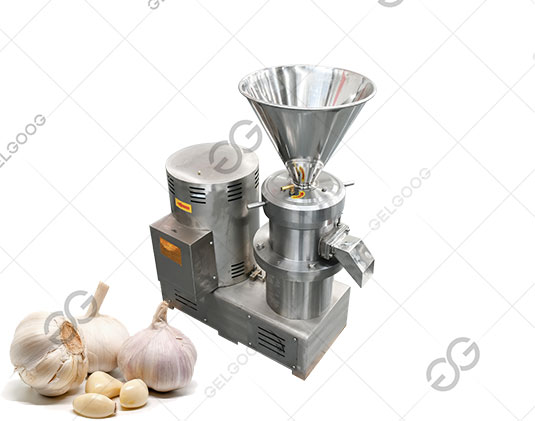

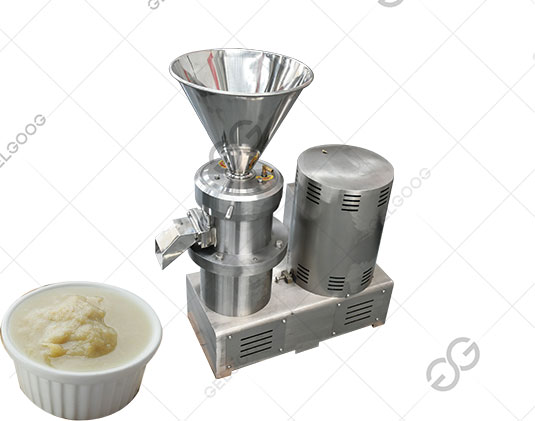

Garlic Paste Grinding Machine for Garlic Processing Factory

The garlic sauce grinding machine can be selected with different specifications and models according to different material characteristics, production efficiency and purpose to achieve good results. It can be well integrated into the garlic sauce production line

Garlic Paste Grinding Machine Working Principle:

The garlic sauce grinding machine is driven by an electric motor, which drives the rotating teeth and the matching fixed teeth. There is an adjustable small gap between the two grinding bodies. When the garlic passes through this gap, due to the high-speed rotation of the rotor (its linear speed is generally 13-40m/s), the speed of the garlic attached to the rotor surface is the largest, while the speed of the garlic attached to the stator surface is zero. This creates a sharp velocity gradient, which subjects the garlic to strong physical effects such as shearing, friction, high-frequency vibration, and high-speed vortex, so that the garlic is effectively emulsified, dispersed, homogenized, and crushed, achieving the effect of ultra-fine crushing and emulsification of garlic.

Garlic Sauce Grinding Machine Features:

1. Ultrafine grinding and multi-function integration: The grinding machine can complete the ultrafine grinding of solids in the suspension in a very short time, making it reach a micronization level of 50μm. At the same time, it also has the functions of mixing, stirring, dispersing and emulsifying, and one machine has multiple uses, providing convenience for process optimization.
2. High efficiency and high productivity: Compared with traditional ball mills and roller mills, the efficiency and output of garlic sauce grinding machine are increased by more than 2 times, significantly shortening processing time and significantly improving production efficiency.
3. Precise particle size control: By adjusting the gap between the fixed grinding disc and the rotating grinding disc, the minimum can reach 50μm, so as to achieve precise control of the particle size of the finished product and meet diverse production needs.
4. Compact structure and easy operation: The garlic paste grinding machine has a compact design, occupies a small area, and is easy to install and operate.

Precautions for Using Garlic Paste Grinding Machine:

• The equipment cannot process dried garlic, only wet garlic.
• The feed particle size should be less than 1mm. Garlic should be cleaned of debris before entering the equipment. It is strictly forbidden to allow hard objects such as iron and gravel particles to enter the equipment to prevent damage to the machine.
• Garlic can be ground once or multiple times according to the processing requirements.

The garlic paste machine has a reasonable and simple structure and is easy to operate. It does not require special maintenance during use, but it is necessary to regularly check the wear of the stator and rotor of the equipment, the fineness of the processed materials, the sealing effect of the seals, etc. This will ensure that the machine can serve you for a long time.
